SOLROOF INTEGRATED PHOTOVOLTAIC ROOF

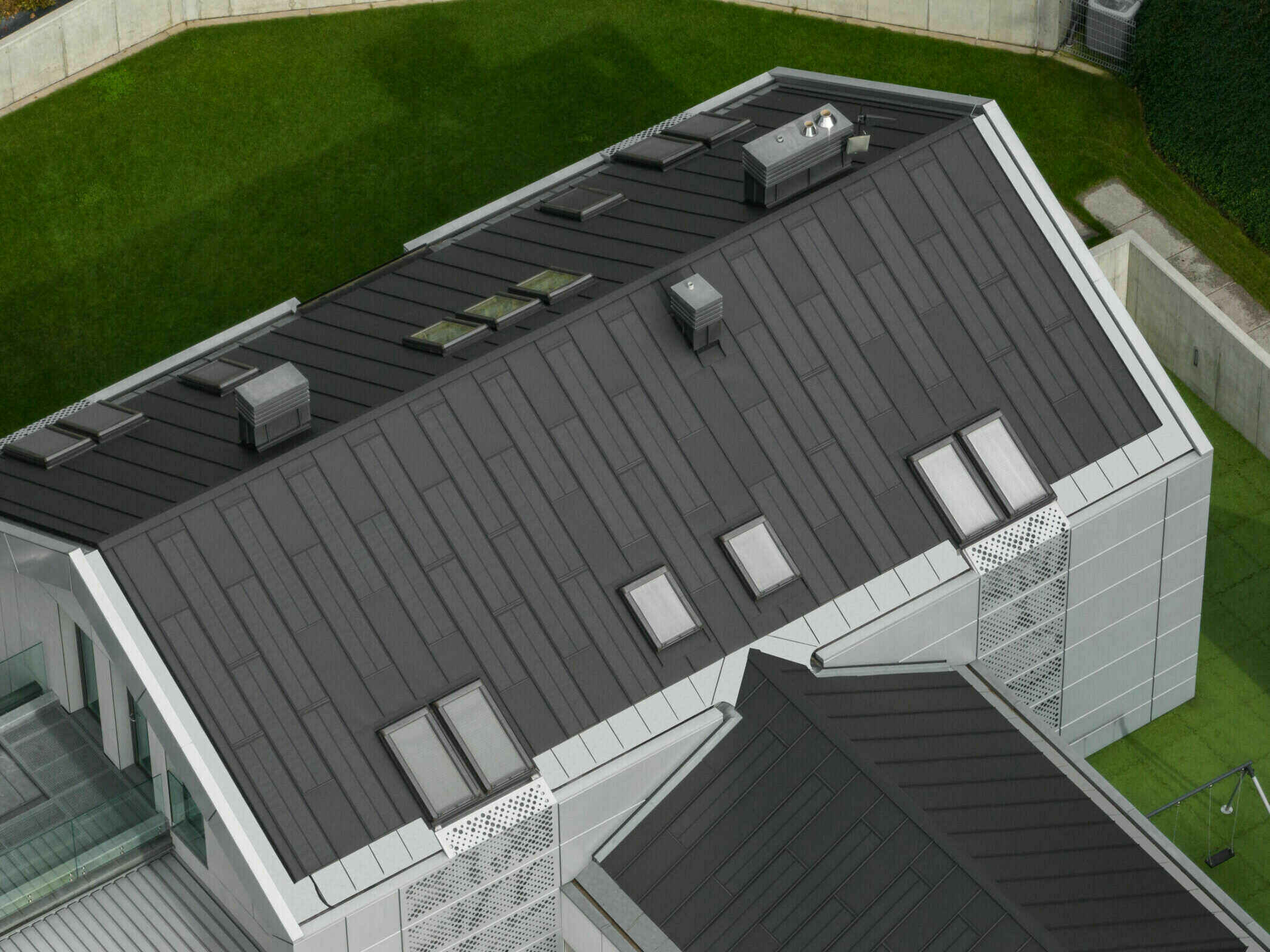

An innovative system that was developed in response to the growing demand for clean energy. This is a complete photovoltaic system fully integrated into the tin roofing.
ARE YOU INTERESTED IN A FREE SOLROOF SYSTEM OFFER?
ASK FOR AN OFFERUNCOMPROMISING AESTHETICS
IN HARMONY WITH NATURE
ELEGANCE AT THE HIGHEST LEVEL HAS BEEN COMBINED WITH INNOVATIVE TECHNOLOGY AND THE LIGHTNESS OF SOLROOF INTEGRATED PHOTOVOLTAIC PANELS.
Using a modern solution, we eliminate unattractive, heavy photovoltaic panels, along with the visible mounting structure and cabling which we know from standard solutions.
FIT VOLT integrated photovoltaic panels are perfectly visually matched to modular FIT roof panels, which were created in accordance with the idea of minimising the carbon footprint using GREEN STEEL.
FIT VOLT integrated photovoltaic panels are perfectly visually matched to modular FIT roof panels, which were created in accordance with the idea of minimising the carbon footprint using GREEN STEEL.
COMFORT IS IN SIMPLICITY
TRANSPARENT TERMS OF USE WITH ALL IN ONE
One system: The SOLROOF system consists of integrated FIT VOLT photovoltaic panels, FIT modular roof panels, optimisers and SolarEdge system components.
One assembly:Thanks to the modularity of FIT VOLT and FIT panels, the installation is quick and carried out by authorised roofers.
One warranty: The roof is covered by a single manufacturer's warranty.
One service: In emergency situations, maintenance services are carried out by our authorised roofers
One assembly:Thanks to the modularity of FIT VOLT and FIT panels, the installation is quick and carried out by authorised roofers.
One warranty: The roof is covered by a single manufacturer's warranty.
One service: In emergency situations, maintenance services are carried out by our authorised roofers
INNOVATIONS THAT MAXIMISE EFFICIENCY, COMFORT AND SAFETY
WHEN CREATING SOLROOF, THE MOST IMPORTANT GOAL WAS TO ENSURE MAXIMUM SYSTEM EFFICIENCY.
Thanks to SolarEdge optimisers, you can enjoy the maximum efficiency of the panels regardless of shade or dirt that, in traditional photovoltaic panels, reduce the efficiency of the entire installation. The Safe DC™ function minimises the risks caused by power surges and lowers the operating temperature of the panels, thus extending their life. All wiring related to the installation is located under the roof covering in dedicated steel profiles. Optimisers are mounted at the edge of the roof for easy access.
EASY OF USE
INTUITIVE SOLROOF MANAGEMENT APPLICATION
Constant monitoring of the functioning of the roof is carried out by an intuitive and easy-to-use mobile application. It allows real-time tracking of information on the energy obtained from the roof and what is used by the facility.
Using the app, you can:
Using the app, you can:
rapidly detect any failures or damage
generate reports and optimise energy use
check the savings achieved
streamline maintenance work
ADVANTAGES OF SOLROOF
ATTRACTIVE APPEARANCE
Using a modern solution, we eliminate unattractive, heavy photovoltaic panels, along with the visible mounting structure and cabling which we know from standard solutions.
CONSISTENCY OF FORM
FIT VOLT integrated photovoltaic panels have been designed to perfectly match the FIT modular roofing. We have eliminated unsightly panel frames, silver paths and visible joints.
XCarb
XCarb recycled and renewably produced steels are created in an electric arc furnace (EAF) using a minimum of 75% of scrap and 100% renewable electricity, resulting in a product with 70% less carbon than steel produced using conventional blast furnace technology.
SUSTAINABLE PRODUCTION
SOLROOF is manufactured from the highest quality materials in the European Union, in accordance with EU directives aimed at creating sustainable infrastructure and achieving zero-emission buildings. We actively participate in the work of the Key Cluster ”Sustainable Infrastructure”,
ONE SYSTEM
Now, the roof and the photovoltaic system are one. The SOLROOF comprehensive photovoltaic system includes integrated FIT VOLT integrated photovoltaic panels, FIT modular roof panels, optimisers and SolarEdge system components.
ONE ASSEMBLY
In SOLROOF, we value short assembly time. Thanks to the modularity of FIT VOLT and FIT panels, the installation is quick and carried out by authorised roofers.
ONE WARRANTY
Thanks to the integrated SOLROOF solution, the roof is covered by a single manufacturer’s warranty. In addition, the need to damage the roof, which takes place during the installation of standard photovoltaic panels, is excluded - your guarantee remains safe.
ONE SERVICE
In emergency situations, maintenance services are carried out by our authorised roofers, without the need to identify contractors responsible for assembly errors at individual stages.
MAXIMUM PERFORMANCE
Thanks to SolarEdge optimisers, you can enjoy the maximum efficiency of the panels regardless of shade or dirt that, in traditional photovoltaic panels, reduce the efficiency of the entire installation.
ASSEMBLY AND USE
The Safe DC™ function minimises the risks caused by power surges and lowers the operating temperature of the panels, thus extending their life. All wiring related to the installation is located under the roof covering in dedicated steel profiles. Optimisers are mounted at the edge of the roof for easy access.
EASE OF USE
Constant monitoring of the functioning of the roof is carried out by an intuitive and easy-to-use mobile application. It allows real-time tracking of information on the energy obtained from the roof and what is used by the facility.
HIGH DURABILITY
FIT VOLT integrated photovoltaic panels have a high resistance to weather conditions, successfully passing the hail ball impact test carried out in accordance with the international standard IEC 61215.
GOVERNMENT FUNDING
Our advisers will support you at every stage in the process of obtaining subsidies for the integrated system of SOLROOF panels, as well as in the process of reporting installations to the power company. In addition, if the investment is the basis for thermal modernisation of s building, we can help in obtaining a tax relief.
TECHNICAL INFORMATION FIT VOLT
Technical information
| NAME | FIT VOLT | |
| NUMBER OF CELLS | 36 | |
| Cell type | monocrystalline cells PERC 210mm Half-cut 2x18 | |
| RATED POWER [W] | 175 | |
| IDLE VOLTAGE [V] | 24 | |
| SEAM HEIGHT [MM] | 22 | |
| TOTAL WIDTH [MM] | 558 |
| EFFECTIVE WIDTH [MM] | 527 | |
| STEEL | 0,5 mm, XCarb AcrelorMittal | |
| SHEET THICKNESS [MM] | 0,5 | |
| SHEET LENGTH [MM] | 2040 | |
| CONNECTORS TYPE | MC4 Staubli EVO2, IP67 | |
| OVERLAP LENGTH WHEN DIVIDING SHEETS [MM] | 30 | |
| ROOF INCLINATION [°] | >15 | |
| TEMPERATURE OPERATING RANGE: | from -40°C to +85°C |
| NAME | FIT VOLT | |
| NUMBER OF CELLS | 36 | |
| Cell type | monocrystalline cells PERC 210mm Half-cut 2x18 | |
| RATED POWER [W] | 175 | |
| IDLE VOLTAGE [V] | 24 | |
| SEAM HEIGHT [MM] | 22 | |
| TOTAL WIDTH [MM] | 558 | |
| EFFECTIVE WIDTH [MM] | 527 | |
| STEEL | 0,5 mm, XCarb AcrelorMittal | |
| SHEET THICKNESS [MM] | 0,5 | |
| SHEET LENGTH [MM] | 2040 | |
| CONNECTORS TYPE | MC4 Staubli EVO2, IP67 | |
| OVERLAP LENGTH WHEN DIVIDING SHEETS [MM] | 30 | |
| ROOF INCLINATION [°] | >15 | |
| TEMPERATURE OPERATING RANGE: | from -40°C to +85°C |
The PV modules are designed to meet the following requirements to conform to standards:
• IEC 61215-1:2016 (functionality of the PV modules),
• IEC 61730-1:2016 (PV module safety),
• EN 13501-5:2016 BROOF (T1) (fire protection).
HOW DOES SOLROOF WORK?
APP MONITORING
App mySolarEdge allows you to manage the entire photovoltaic system 24 hours a day, 7 days a week.
1
FIT VOLT
Integrated photovoltaic panel.
2
FIT
Modular roof panel.
3
OPTIMISER
Maximises panel efficiency regardless of shade, dirt and other unfavourable factors compared to convential panels.
4
INVERTER
The heart of the system. It converts direct current to alternating current.
5
ENERGY BANK
By storing green energy, You have constant access to green energy, even when the cloudy weather or the time of day prevents its production through the SOLROOF integrated photovoltaic roof.
COMMON SOLUTIONS - FULL COMPATIBILITY
FIT VOLT was created with roofers in mind. It has all the features valued in a traditional FIT modular panel. Both products can be freely combined with each other, creating a uniform and elegant roof surface. The modularity of the panel, both in the basic version and in the FIT VOLT version, has many advantages - it speeds up installation considerably, enables easier transport and storage, and the proprietary jointing systems result in additional ease for roofers. The snap-lock technology allows for a visual effect like that of a traditionally fluted seam.
EASY LINK
This proprietary solution consists of cutting out the corner of the embossing to avoid overlapping the layers of sheets at the connection point. In addition, a specially shaped profile of extreme ribs allows the sheets to fit together perfectly without visible longitudinal joints.
MODULARITY
The modularity of FIT VOLT and FIT panels has many advantages. It enables easier transport and storage and significantly speeds up assembly, which reduces the costs resulting from the time of investment implementation.
BEND LOCK
Folding the panel at the eave part of the roof conceals and protects the cut edge and eliminates the need to install screws. In addition, the lower BEND LOCK fold is cut at an angle, which makes it easier to guide and connect the panels along their length.
Dedicated FIT VOLT flashings
Ridge tiles and flashings are an inseparable element of any properly made roofing. Dedicated flashings for the SOLROOF system protect the integrated photovoltaic roof against the forces of wind and roof leakage. They are made of sheets with the same palette of coatings and colours as our FIT and FIT VOLT panels, thanks to which they guarantee an aesthetic fit.
SOLROOF ACCESSORIES
In our assortment you will find controllers, energy metering meters, energy storage, MESH network modules and car chargers. All of these products provide full control over the operation of our system - precise monitoring of energy production and consumption, energy surplus storage, seamless network communication and efficient charging of electric vehicles. With these solutions, the SOLROOF system will become a comprehensive and optimized energy source for your home.
NEWS
Latest news from the SOLROOF world
OTHER QUESTIONS ABOUT THE SOLROOF SYSTEM?
SOLROOF relies on the high quality guaranteed by BP2 - a leading manufacturer of comprehensive solutions for the steel and construction industry, which has been present in the market for 30 years.
